Entry 5

Current Iteration (Refining material and movement of perfume bottle particle forming)

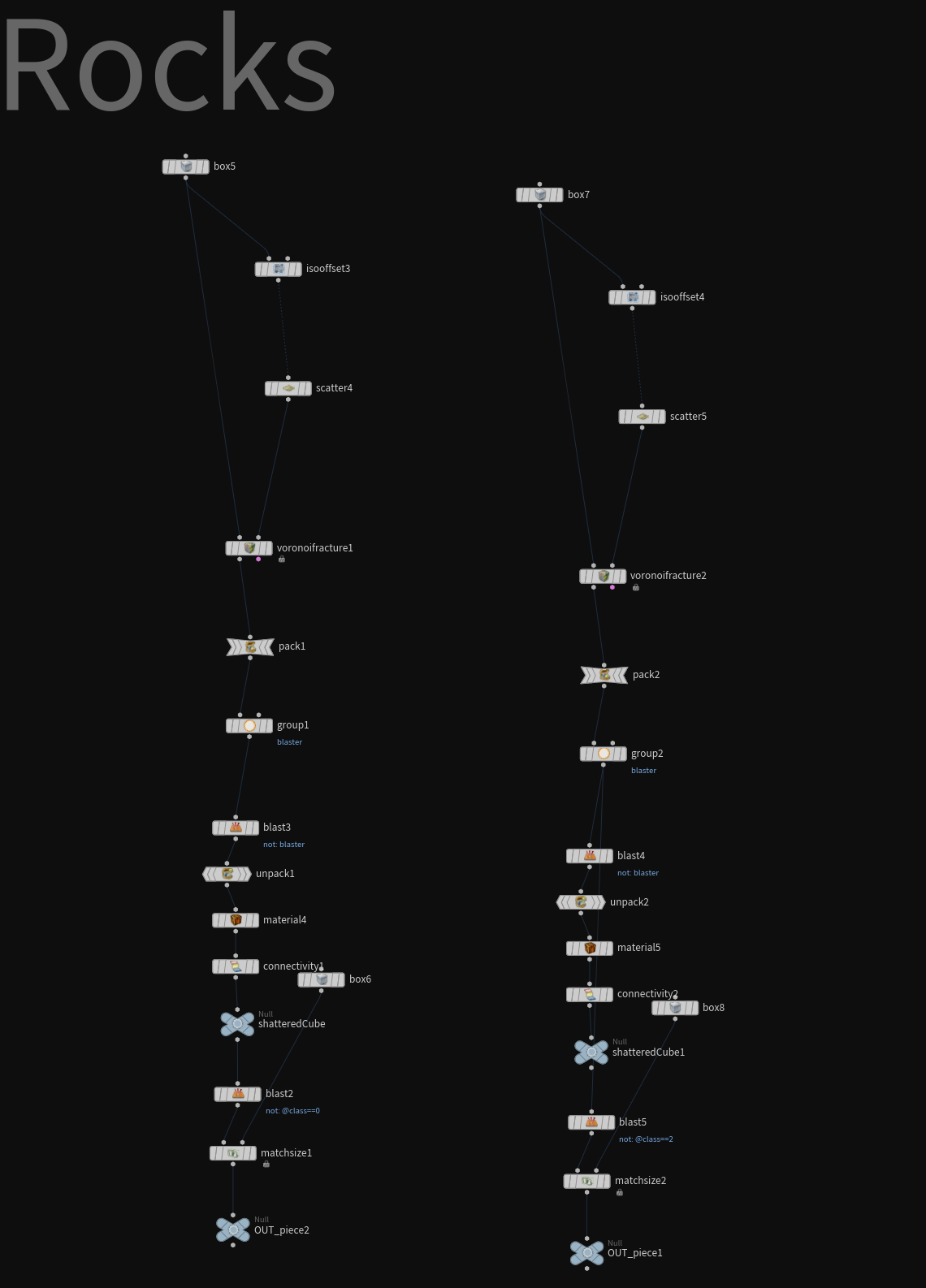

Creating the rocks using Voronoi fracture and blasting out sections of geo.

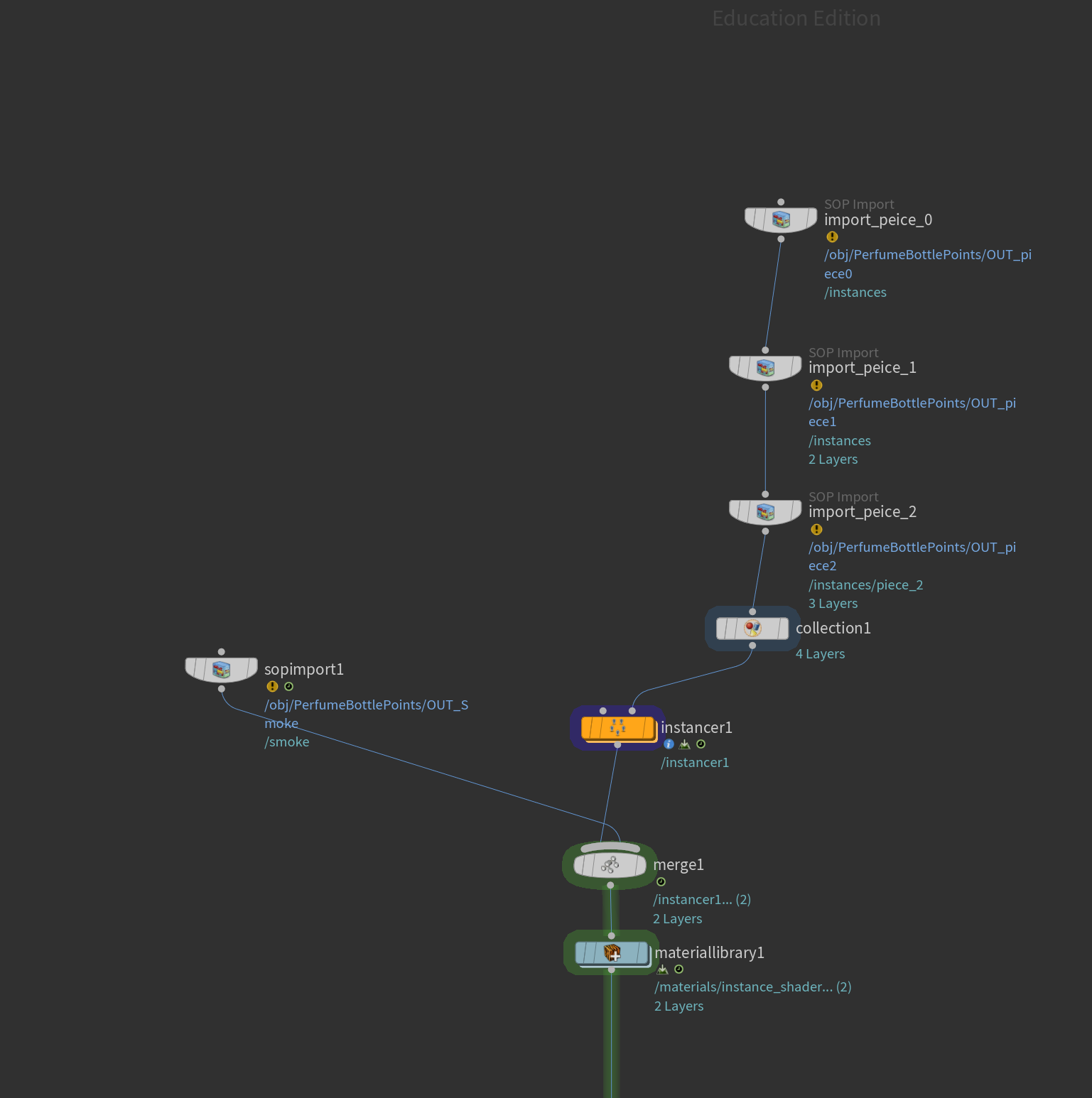

Instancing Rocks on Points in the Lop Network

• This was actually my first time using the instancer in LOPS.

• If you want to have multiple different objects being referenced to scatter, you need to make a collection of the different pieces for the instancer to select from.

• This is a useful method as I fractured the cube 10 times, and thus now had 10 different rocks to choose from. Since I placed down a connectivity node, each piece now has a class and I can select amongst those.

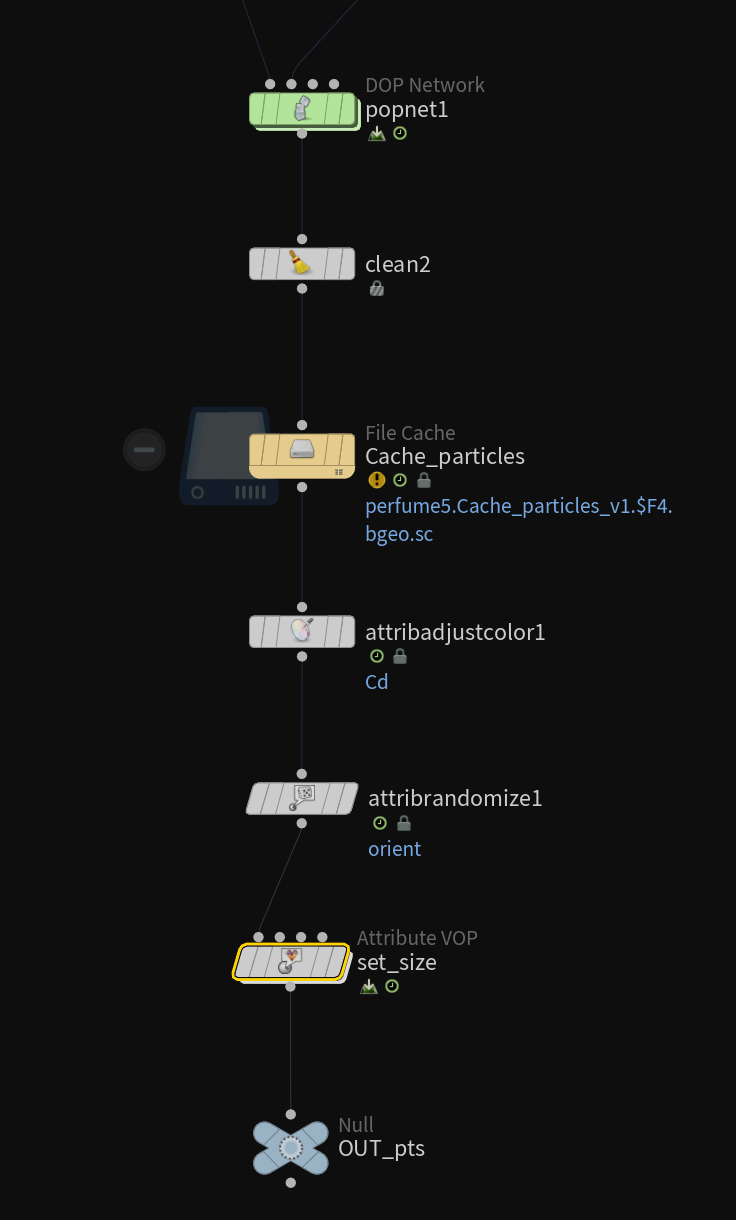

Giving uniqueness and randomizing point data.

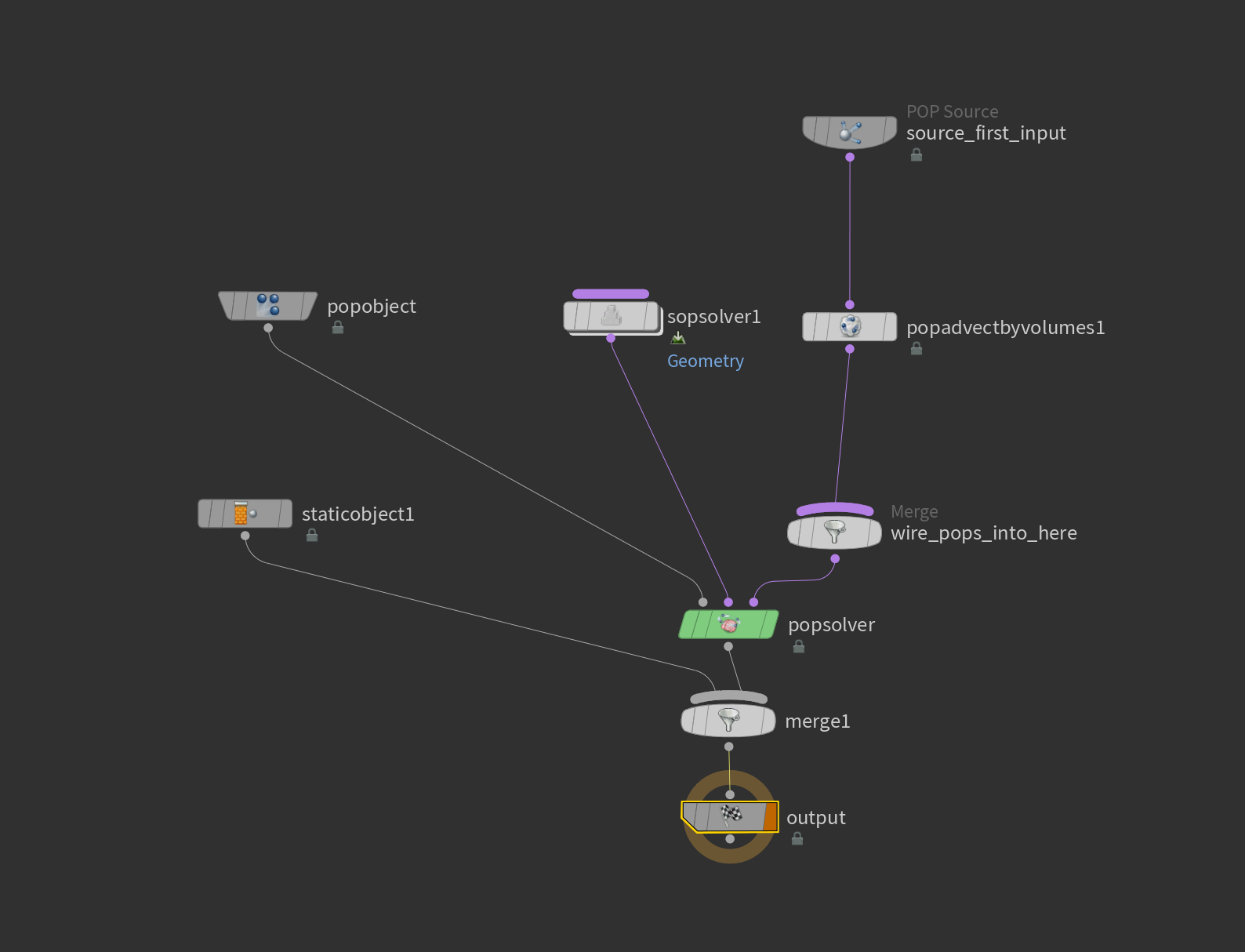

Inside Pop Network

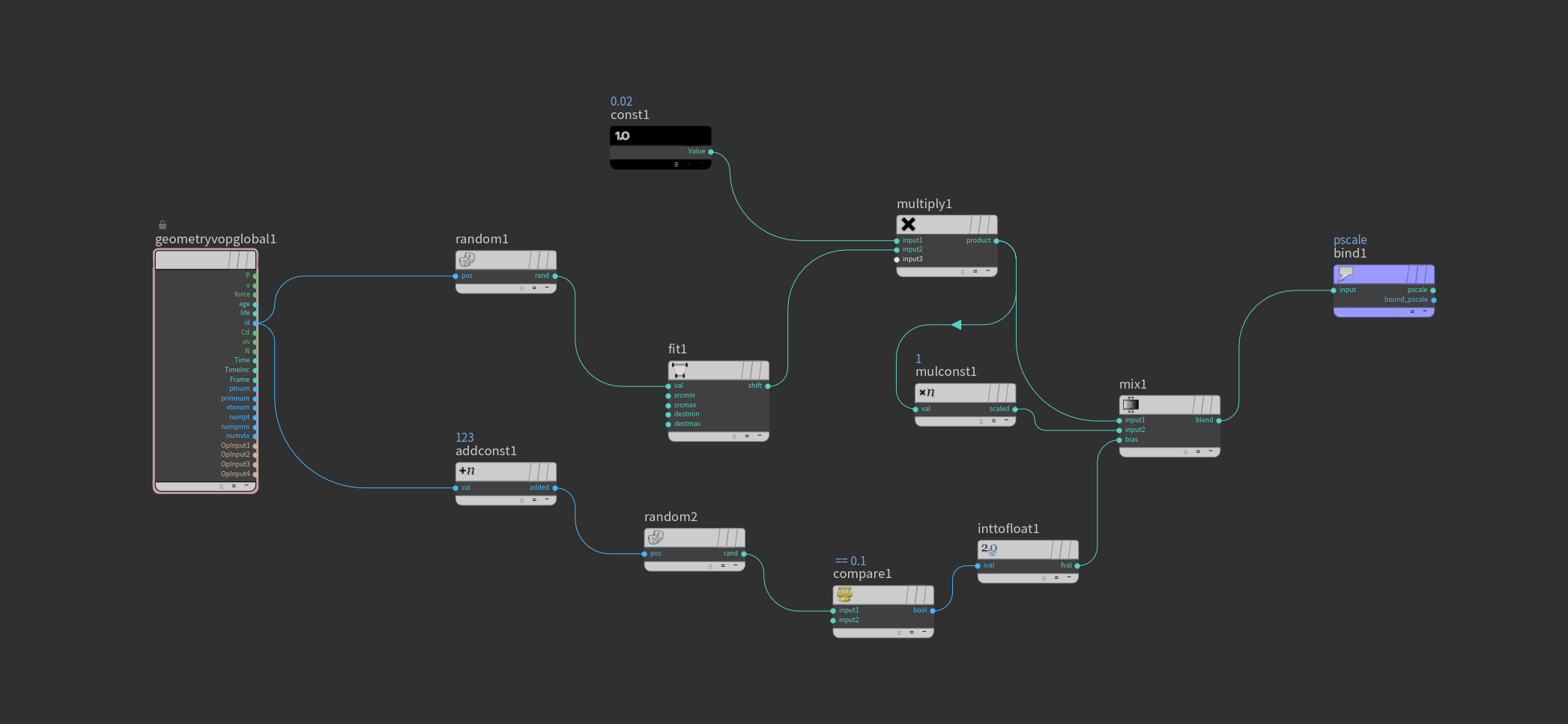

Setting rock sizing in VOPS.
